Shape-changing metamaterial developed using Kirigami technique

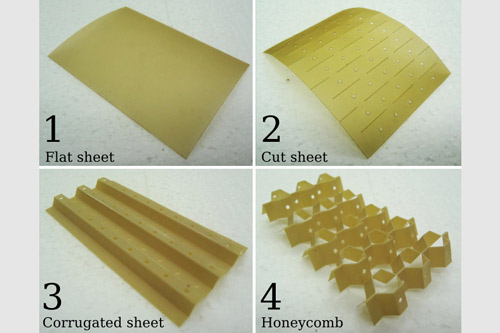

An open honeycomb at each stage during the manufacturing process

Press release issued: 5 August 2016

Engineers from the University of Bristol have developed a new shape-changing metamaterial using Kirigami, which is the ancient Japanese art of cutting and folding paper to obtain 3D shapes.

Metamaterials are a class of material engineered to produce properties that don’t occur naturally. Currently metamaterials are used to make artificial electromagnetic and vibration absorbers and high-performance sensors. Kirigami can be applied to transform two-dimensional sheet materials into complex three-dimensional shapes with a broader choice of geometries than 'classical' origami.

The research, developed within a PhD programme run by the University's EPSRC Centre for Doctoral Training in Advanced Composites for Innovation and Science (ACCIS CDT), is published today in Scientific Reports.

The type of mechanical metamaterials using the Kirigami technique, developed by PhD student Robin Neville, changes shape seamlessly, exhibits large variations in mechanical performance with small geometry changes, and can be adapted to modify its configuration by using mainstream actuation mechanisms.

The Kirigami metamaterial can also be produced using off-the-shelf thermoplastic or thermoset composite materials, and different sensing and electronics systems can be embedded to obtain a fully integrated smart shape-changing structure.

Fabrizio Scarpa, Professor of Smart Materials and Structures in the Department of Aerospace Engineering and ACCIS, said: "Mechanical metamaterials exhibit unusual properties through the shape and deformation of their engineered subunits. Our research presents a new investigation of the kinematics of a family of cellular metamaterials based on Kirigami design principles. This technique allows us to create cellular structures with engineered cuts and folds that produce large shape and volume changes, and with extremely directional, tuneable mechanical properties."

Robin Neville, PhD student, added: "By combining analytical models and numerical simulations we have demonstrated how these Kirigami cellular metamaterials can change their deformation characteristics. We have also shown the potential of using these classes of mechanical metamaterials for shape change applications like morphing structures."

In the future, this Kirigami metamaterial could be used in robotics, morphing structures for airframe and space applications, microwave and smart antennas.

Paper:

'Shape morphing Kirigami mechanical metamaterials' by Robin M. Neville, Fabrizio Scarpa and Alberto Pirrera in Scientific Reports [open access]

Further information

About the EPSRC Centre for Doctoral Training in Advanced Composites for Innovation and Science

The Centre for Doctoral Training in Advanced Composites for Innovation and Science (ACCIS CDT) was established in 2009 following a £7.1 million award from the UK Engineering and Physical Sciences Research Council (EPSRC). The CDT was renewed in 2014 with £4.9 million of funding, securing its future until 2022.

The use of composites is growing at an unprecedented rate. The need for lightweight, high performance, multifunctional materials and their design into structures are key elements in meeting the goals of a sustainable future. Furthermore, composite materials and their structures have been recognized as one of the key industries by which the UK can seek to rebalance the economy towards high value manufacturing.

The CDT benefits from significant industrial involvement, with previous and current PhD projects undertaken in collaboration with an F1 Company, AgustaWestland, Airbus, dstl, EOARD, GE Aviation, Haydale, RNLI, Rolls-Royce and Vestas.
