It’s a 3D printer, but not as we know it

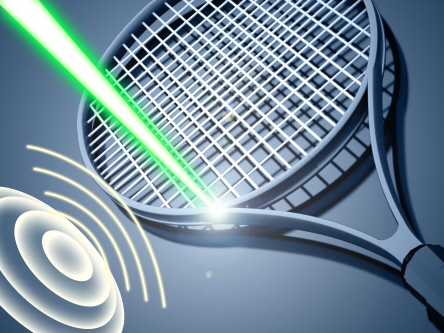

The research team have developed the first demonstration of 3D printing of composite materials. Ultrasonic waves produce a pattern of microscopic glass fibres which give the component increased strength. A laser cures the epoxy resin and creates the component Image courtesy of Matt Sutton, Tom Llewellyn-Jones and Bruce Drinkwater © 2016

18 January 2016

3D printing techniques have quickly become some of the most widely used tools to rapidly design and build new components. A team of engineers at the University of Bristol has developed a new type of 3D printing that can print composite materials, which are used in many high performance products such as tennis rackets, golf clubs and aeroplanes. This technology will soon enable a much greater range of things to be 3D printed at home and at low-cost.

The study published in Smart Materials and Structures creates and demonstrates a novel method in which ultrasonic waves are used to carefully position millions of tiny reinforcement fibres as part of the 3D printing process.  The fibres are formed into a microscopic reinforcement framework that gives the material strength. This microstructure is then set in place using a focused laser beam, which locally cures the epoxy resin and then prints the object.

Tom Llewellyn-Jones, a PhD student in advanced composites who developed the system, said: “We have demonstrated that our ultrasonic system can be added cheaply to an off-the-shelf 3D printer, which then turns it into a composite printer.”

In the study, a print speed of 20mm/s was achieved, which is similar to conventional additive layer techniques. The researchers have now shown the ability to assemble a plane of fibres into a reinforcement framework. The precise orientation of the fibres can be controlled by switching the ultrasonic standing wave pattern mid-print.

To achieve this the research team mounted a switchable, focused laser module on the carriage of a standard three-axis 3D printing stage, above the new ultrasonic alignment apparatus.

This approach allows the realisation of complex fibrous architectures within a 3D printed object. The versatile nature of the ultrasonic manipulation technique also enables a wide-range of particle materials, shapes and sizes to be assembled, leading to the creation of a new generation of fibrous reinforced composites that can be 3D printed.

Bruce Drinkwater, Professor of Ultrasonics in the Department of Mechanical Engineering, said: “Our work has shown the first example of 3D printing with real-time control over the distribution of an internal microstructure and it demonstrates the potential to produce rapid prototypes with complex microstructural arrangements. This orientation control gives us the ability to produce printed parts with tailored material properties, all without compromising the printing.”

Dr Richard Trask, Reader in Multifunctional Materials in the Department of Aerospace Engineering, added: “As well as offering reinforcement and improved strength, our method will be useful for a range of smart materials applications, such as printing resin-filled capsules for self-healing materials or piezoelectric particles for energy harvesting.”

Paper: 3-D printed components with ultrasonically arranged microscale structure by Thomas M. Llewellyn-Jones, Bruce W. Drinkwater, Richard S. Trask in Smart Materials and Structures [Open Access]

Further information

About the project team

Tom Llewellyn-Jones is a PhD student in the EPSRC Centre for Doctoral Training in Advanced Composites for Innovation and Science based in the Department of Aerospace Engineering at the University of Bristol

Bruce Drinkwater is Professor of Ultrasonics in the Department of Mechanical Engineering at the University of Bristol. He’s on Twitter: @sonic_bruce

Dr Richard Trask is Reader in Multifunctional Materials and a member of the Advanced Centre for Composites Innovation and Science (ACCIS) research group in the Department of Aerospace Engineering at the University of Bristol.

The research was supported by the Engineering and Physical Sciences Research Council (EPSRC) through the EPSRC Centre for Doctoral Training in Advanced Composites for Innovation and Science [grant number EP/G036772/1].

The authors gratefully acknowledge the support of the EPSRC for funding Dr Richard Trask’s fellowship and research under EPSRC ‘Engineering Fellowships for Growth’ [grant number EP/M002489/1].
